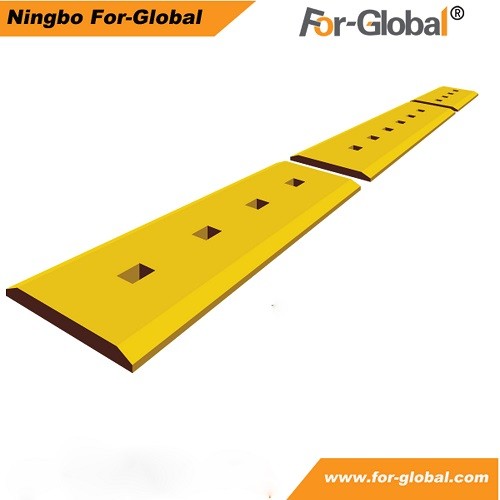

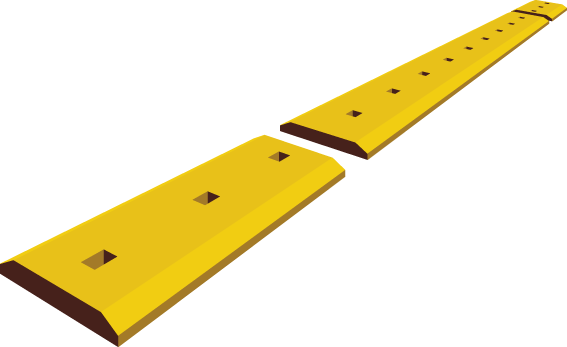

Loader Cutting Edge & Accessories:
★OEM Replacement or Custom Design
★Carbon Steel (Heat Treated) & Boron Steel (Heat Treated)
★Thickness from 16mm to 100mm
★Weld on Bucket Base Edge: Straight Type & Spade Type
★Bolt on Cutting Edge, End Bit & Segment
★Half Arrow Cutting Edge ( Rolled Steel)
★Bolt on Rear Wear Plate
Loader Cutting Edge | |||
P/N | Main Dimension (mm) | Holes | Dia. |
9V6573 | 2738*282*30 | 30 | 1" |
9V6575 | 3000*300*40 | 30 | 1-1/4" |
6W2985 | 2634*245*25 | 28 | 1" |
7V1490 | 3033*300*40 | 18 | 1-1/4" |
7I3015 | 3193*304*40 | 30 | 1-1/4" |
9V6574 | 3315*304*45 | 30 | 1-1/4" |
1V2911 | 2286*228*25 | 16 | 1" |
5G8342 | 2367*191*19 | 28 | 3/4" |
8V1825 | 2640*245*25 | 16 | 1" |
7V4188 | 3315*304*45 | 18 | 1-1/4" |
8K9754 | 2921*267*30 | 24 | 1" |
6W2990 | 2856*282*30 | 30 | 1-1/4" |
5V4696 | 2736*282*30 | 18 | 1" |
105-2345 | 2681*245*25 | 28 | 1" |
141-4847 | 2886*282*30 | 30 | 1" |
421-70-12430 | 3170*225*35 | 27 | 7/8" |
419-70-12221 | 2740*254*30 | 14 | 1" |
419-70-12122 | 2685*254*30 | 14 | 1" |
417-70-32120 | 2550*222*25 | 14 | 7/8" |
PS: The models above are just for reference, we can't list all models here. We can supply more products as your requirements. Please feel free to contact with us.
